Loading Plans

Detailed loading plans allow the sender, haulier and recipient to identify loads quickly and easily. This speeds up loading and safety checks.

Mallory HSC will review the legislation and loading environment to ensure all hazards are addressed. With appropriate competency levels achieved through training and instruction of the loading plan, coupled with the appropriate technical qualifications, operational best practise is maintained.

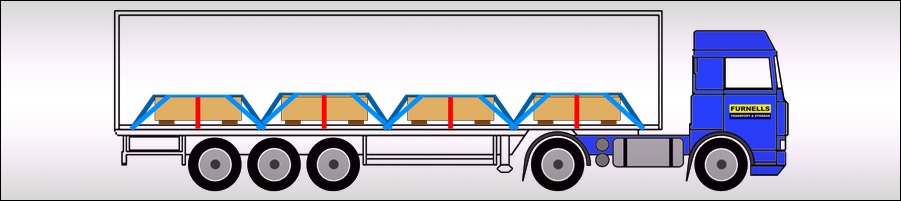

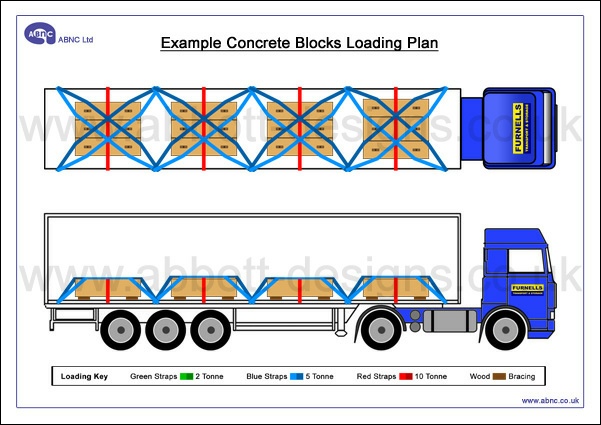

Abbott Designs produce loading plans that visualise the load layouts on specific vehicles. Top and side views, allow item orientation, bracing and strapping arrangements to be clearly understood. A loading key differentiates between strap tonnage capacities. In loads where individual item placement is crucial, item labels are including in the graphics. For unconventional loads detailed photographs and measurements are taken to ensure an accurate graphical representation and a full understanding of loading requirements.
