Delineation Diagrams

Delineation diagrams make access routes and controlled areas clear to staff and contractors. Understanding the working environment allows people to perform different tasks in close proximity.

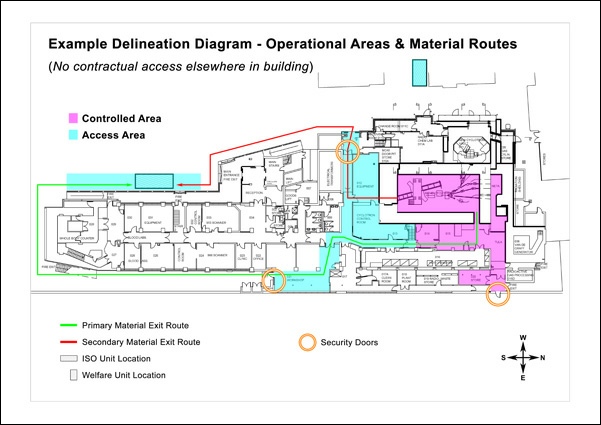

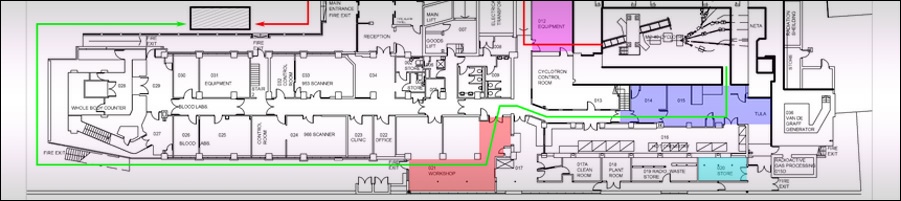

Abbott Designs take existing building plans and superimpose colour coded graphics to denote different working areas, PPE requirements and access routes. We can also produce brand new diagrams to reflect changes in building usage or internal architecture.
